Corner Kit — Mounting Hardware for Corner Bass Traps and Acoustic Pane

Vendor:massform

Corner Kit — Mounting Hardware for Corner Bass Traps and Acoustic Panels

$805.00 TWD

Corner is where the low end actually builds up.

Move any panel into the corner.

Your panel already ships with flat-wall brackets. Swap them for these and the same panel straddles a corner instead

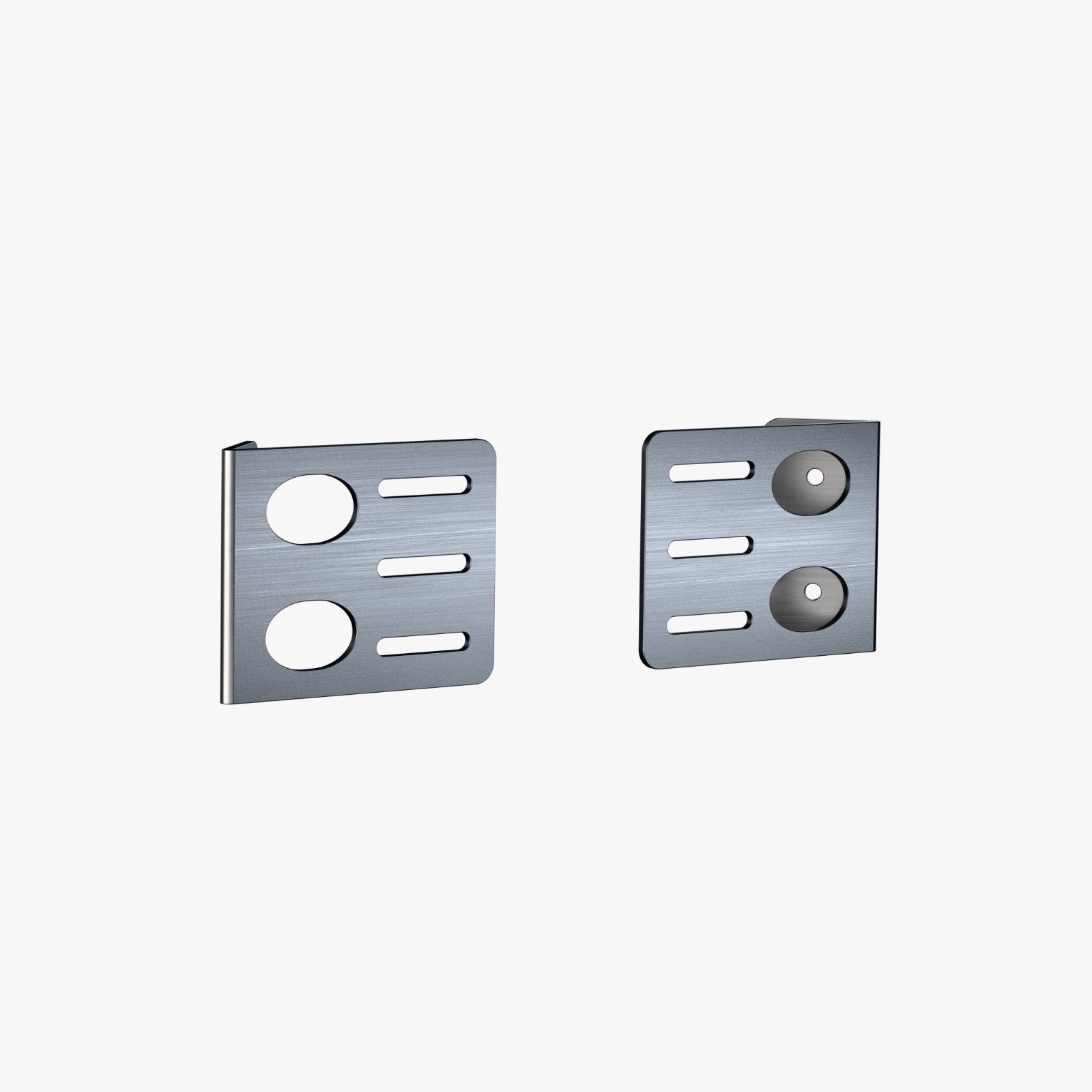

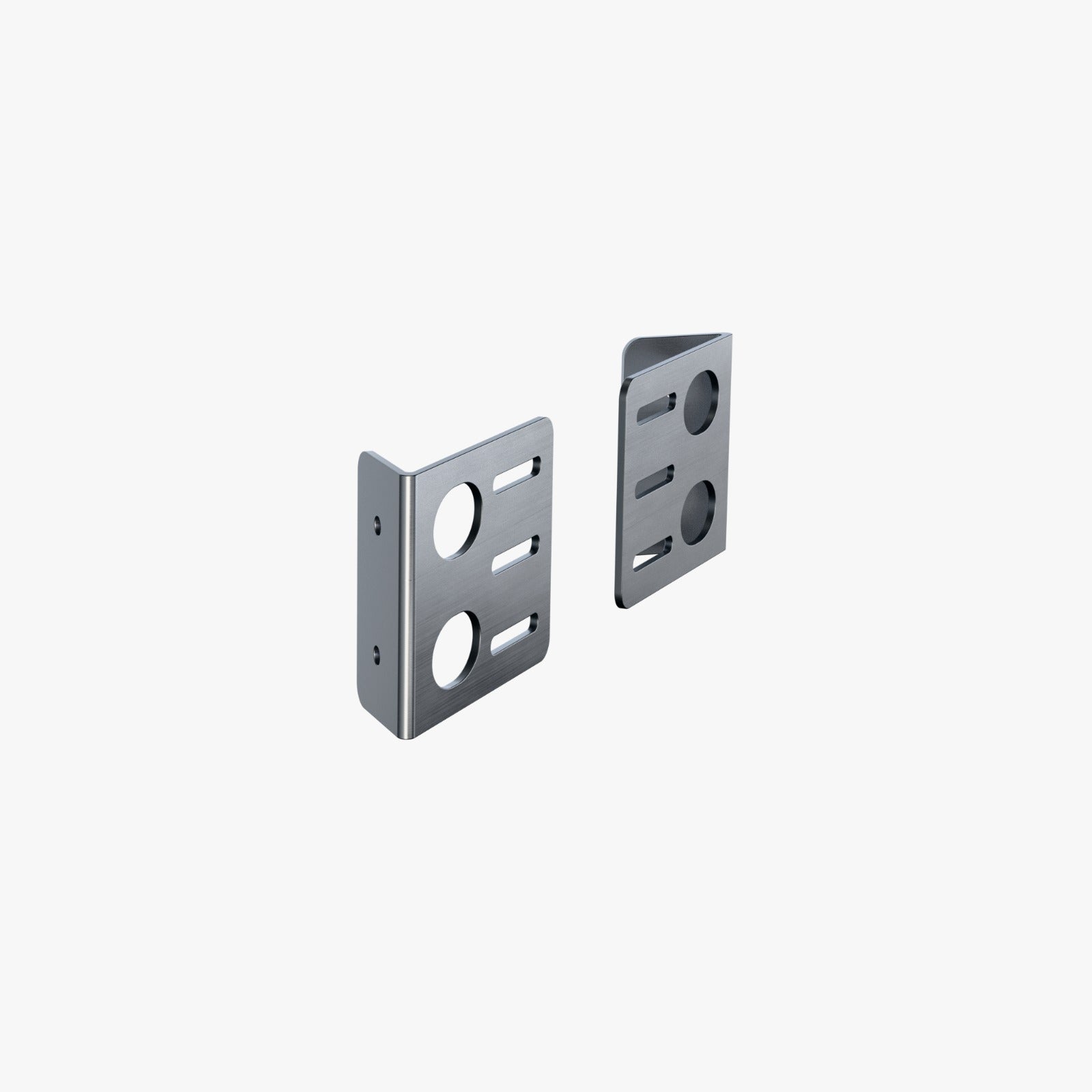

Two brackets in 2.5 mm thick 304 stainless, one on each wall. The panel hangs on an M5 screw with an adjusting nut, so you set depth and level after the brackets are up. Useful, because no corner in a real room is exactly 90°.

A panel across the corner leaves a triangular cavity behind it. That cavity is what does the low-frequency work.

Rated to 40 kg per kit, a bass trap and a surface panel together, with room left over.

One Corner Kit mounts one corner. Four corners, four kits.

Fits every Massform panel with a metal frame, every size and series.

Included: 2 brackets, 2 M5 screws with adjusting nuts. Snapskru dry wall screws.

You supply:

— 40 kg is the hardware. Both brackets need solid backing; in most rooms the wall is the limit, not the steel.
— Ships from our Taiwan studio, separately from your panels, around 2 weeks.

Sets: 1 Set

1 Set
2 Sets
3 Sets

Product variants

Out of stock

Pairs well with

Modular Air-Gap (NOT INCLUDED, purchased separately) attachment compatible to increase lower end absorption by creating a cavity behind the panel.

Modular Bass Trap system let you add (more than one if needed) and subtract bass traps when you need.

Materials

Recycled Polyester Felt + Brushed Anodize Aluminum Frame

Eco-Friendly

Our PET Felt Acoustic Panels are made of recycled plastic bottles, and therefore small variations in colour blends can appear.

How We Measured This Performance

We tested our panels in a real room — not a simulation. Using REW software, a calibrated mic, and our own space, we measured real acoustic improvements. Then we calibrated our results using certified lab data from our Surge panel.

If you're curious about how we did it, or want to see the full setup (yes, there’s a GIF), check out the full test:

See our acoustic test

We did the math so you don’t have to.

Turns out, looking good and sounding good aren’t mutually exclusive.

Feature	GIK Alpha 2” Panel	Massform 2” Panel	GIK Alpha 4” Panel	Artnovion Avalon Flow	Foam Panels
NRC Rating	≈ 0.80–1.0	Up to 1.15	≈ 1.1–1.2	≈ 0.7	≈ 0.3–0.6
Visual Design	Flat w/ cutout	Sculpted 3D form	Bulky rectangle	3D Wood slats	Wedged foam
Depth	2”	2” (stackable to 8")	4”	3.5”	1–2”
Diffusion Built-In	Yes	Yes	Yes	Yes	No
Unit Size (in)	23.5×23.5/23.5×45.5	22.6×22.6/22.6×46.3	23.5×23.5/23.5×45.5	23.4×23.4	12×12/24x24
Price	$79.99-184.99	$129–229	$109.99–214.99	≈ $488 (converted)	≈ $19.99-59.99
Price per sq in	$0.13-0.21	$0.2–0.26	$0.16–0.26	≈ $0.89	≈ $0.02–0.05
Modularity/Future-Proof	❌	✔ modular + bass upgrade	❌	❌	❌
Real-World Feel	Music Studios	Enhances Any Space	Studio Utility	Designer Studio	Dorm / beginner
