Name: Cloud Kit — Ceiling Suspension Hardware for Acoustic Panels
Brand: massform
Price: 490.00 TWD
Availability: InStock

Cloud Kit — Ceiling Suspension Hardware for Acoustic Panels

Vendor:massform

Cloud Kit — Ceiling Suspension Hardware for Acoustic Panels

$490.00 TWD

Turn any Massform panel into a ceiling cloud.

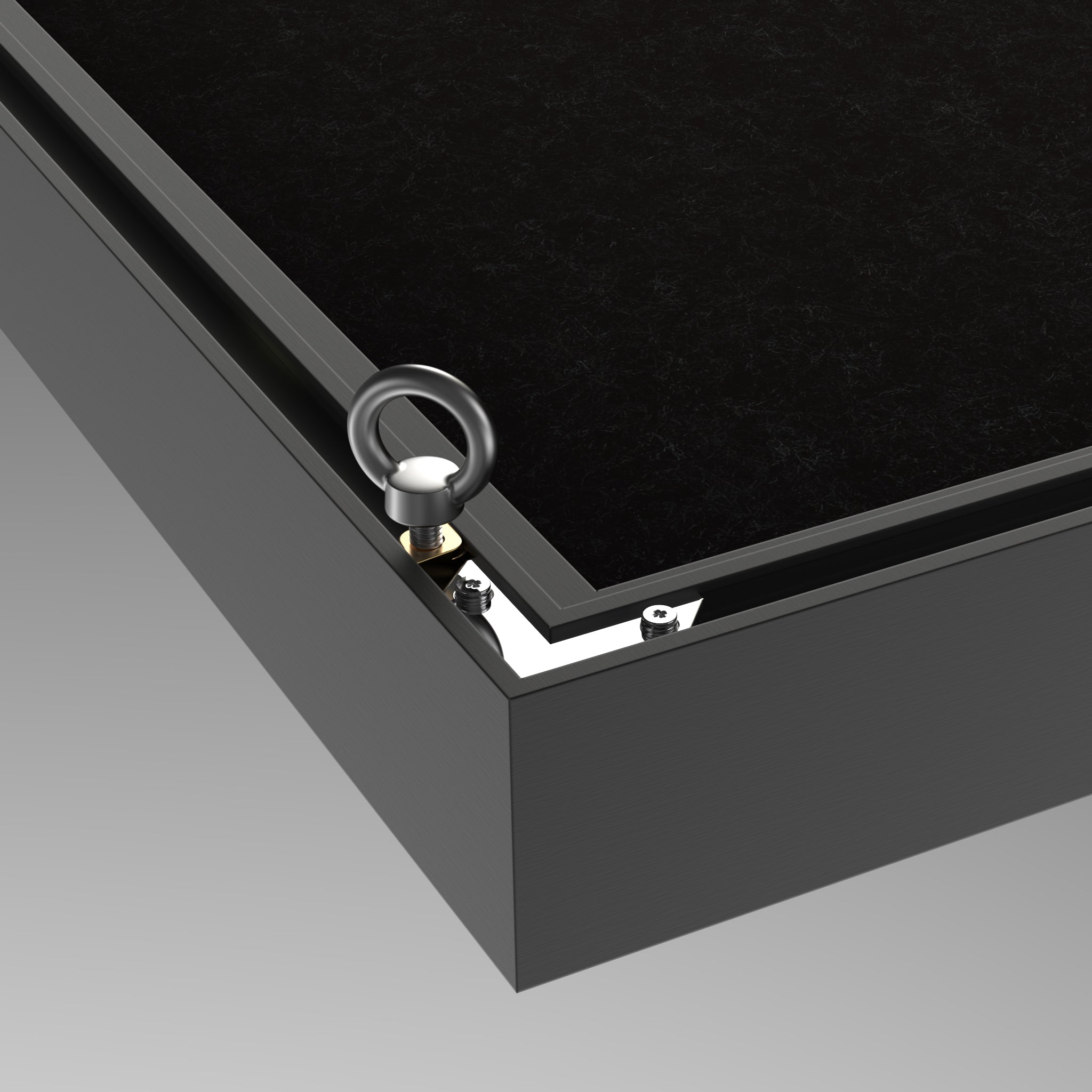

Pull-tested to 200 kg per point. Four brass inserts slide into the channel already built into your panel frame, four M5 stainless eye bolts thread in. No drilling, no adapters, nothing modified.

A cloud catches the reflection coming off the ceiling between your speakers and your head — the one a wall panel can't reach. And because it hangs on cable, you set the drop: a row hung level, or staggered and tilted.

One Cloud Kit hangs one panel. Three panels, three kits.

Fits every Massform panel with a metal frame, every size and series. Excludes Moogdulation.

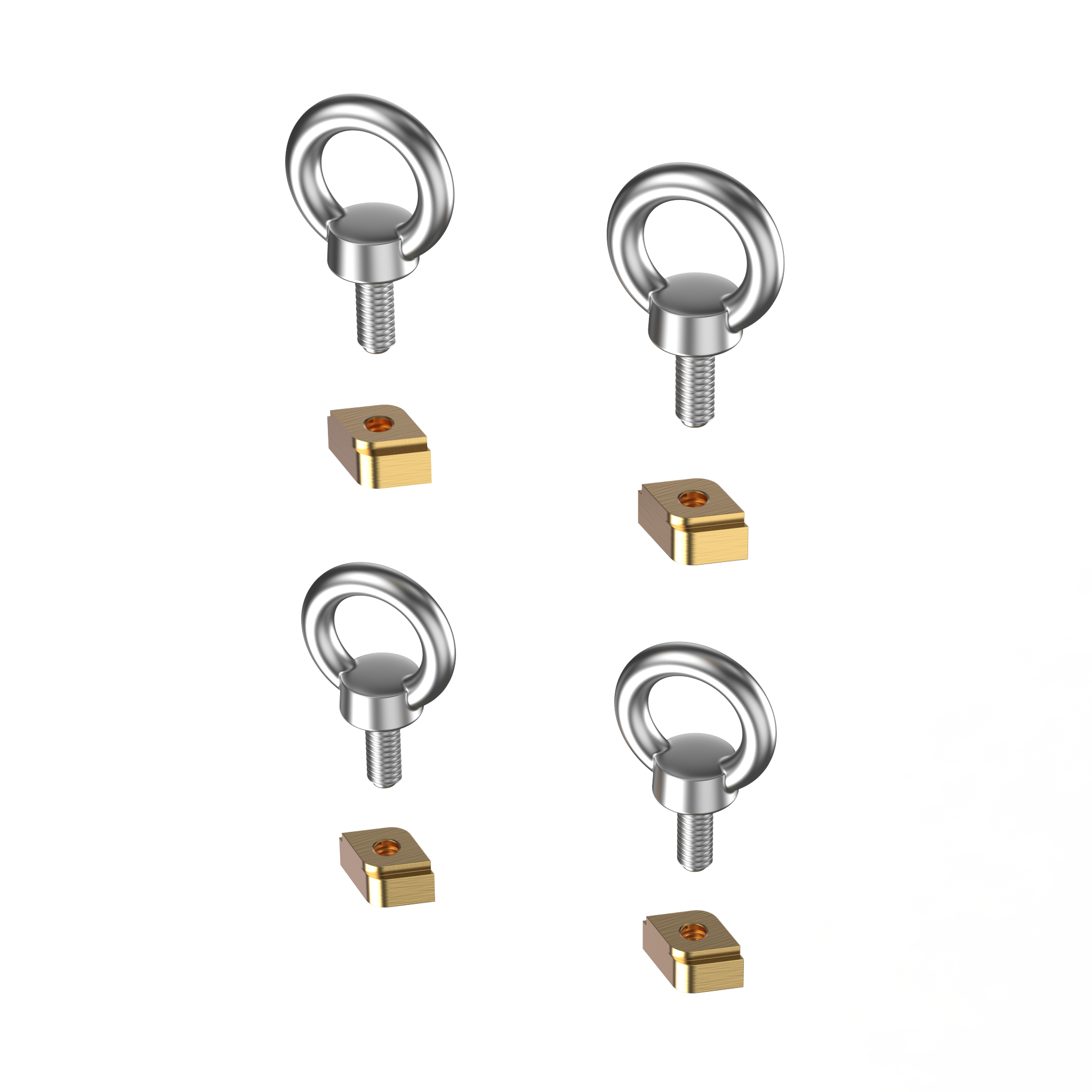

Included: 4 brass channel inserts, 4 M5 stainless eye bolts.

You supply: cable or chain and four ceiling anchors per panel, each rated to at least 4× the panel's weight. Add a secondary safety cable on every overhead install.

— 200 kg is the hardware. Ceiling anchorage is outside our testing; for overhead work we recommend a qualified installer.
— Ships from our Taiwan studio, separately from your panels, around 2 weeks.

Product variants

In stock, ready to ship

Pairs well with

Cloud Kit — Ceiling Suspension Hardware for Acoustic Panels

$490.00 TWD

Modular Air-Gap (NOT INCLUDED, purchased separately) attachment compatible to increase lower end absorption by creating a cavity behind the panel.

Modular Bass Trap system let you add (more than one if needed) and subtract bass traps when you need.

Materials

Recycled Polyester Felt + Brushed Anodize Aluminum Frame

Eco-Friendly

Our PET Felt Acoustic Panels are made of recycled plastic bottles, and therefore small variations in colour blends can appear.

How We Measured This Performance

We tested our panels in a real room — not a simulation. Using REW software, a calibrated mic, and our own space, we measured real acoustic improvements. Then we calibrated our results using certified lab data from our Surge panel.

If you're curious about how we did it, or want to see the full setup (yes, there’s a GIF), check out the full test:

See our acoustic test

We did the math so you don’t have to.

Turns out, looking good and sounding good aren’t mutually exclusive.

Feature	GIK Alpha 2” Panel	Massform 2” Panel	GIK Alpha 4” Panel	Artnovion Avalon Flow	Foam Panels
NRC Rating	≈ 0.80–1.0	Up to 1.15	≈ 1.1–1.2	≈ 0.7	≈ 0.3–0.6
Visual Design	Flat w/ cutout	Sculpted 3D form	Bulky rectangle	3D Wood slats	Wedged foam
Depth	2”	2” (stackable to 8")	4”	3.5”	1–2”
Diffusion Built-In	Yes	Yes	Yes	Yes	No
Unit Size (in)	23.5×23.5/23.5×45.5	22.6×22.6/22.6×46.3	23.5×23.5/23.5×45.5	23.4×23.4	12×12/24x24
Price	$79.99-184.99	$129–229	$109.99–214.99	≈ $488 (converted)	≈ $19.99-59.99
Price per sq in	$0.13-0.21	$0.2–0.26	$0.16–0.26	≈ $0.89	≈ $0.02–0.05
Modularity/Future-Proof	❌	✔ modular + bass upgrade	❌	❌	❌
Real-World Feel	Music Studios	Enhances Any Space	Studio Utility	Designer Studio	Dorm / beginner
