室內測試：Rhythm Pro 吸音板

我們的測試

我們以真實音響設備，在未經處理的 55.54 立方米空間中，測試了 Rhythm Pro 2’x4” 面板。

設備與擺設

麥克風： UMIK-1（已校準），90度校準檔案（麥克風朝上）
揚聲器： KEF Q350（頻率響應 50hz–25000hz）
擴音器ICEpower 100AS2
軟體： 回聲（Room EQ Wizard）
空間尺寸：19.61 平方米，55.54 立方米
麥克風擺位：4個地點，每處平均5次測試
面板擺放：牆掛式設計，內置 35mm 空氣層
面板數量8
懸掛方式：35mm 空氣間隔

校準與方法

為確保房間內測試結果的可靠性，我們先於認證實驗室（ASTM C423）測試 Surge panel，隨後於自家空間以 REW 進行同款測量。比較實驗室與現場數據，讓我們得以校準偏移（delta）。我們已將此修正係數應用於 Rhythm Pro 的測量結果——數據更貼近實驗室的標準表現。

我們為何尚未進行 Rhythm 實驗室測試

雖然 Rhythm Pro 的尺寸與形式可以技術上雖可依 ASTM C423 進行實驗室測試，但台灣本地實驗室對我們的模組化結構較難配合，特別是他們所需的安裝方式與我們實際安裝不同。

我們沒有採用不具代表性的測試，而是以經過實驗室驗證的 Surge 面板（相同材質、相近厚度）作為校準，呈現真實且誠實的性能基準——反映 Rhythm 在實際空間中的表現，而非理想化情境。

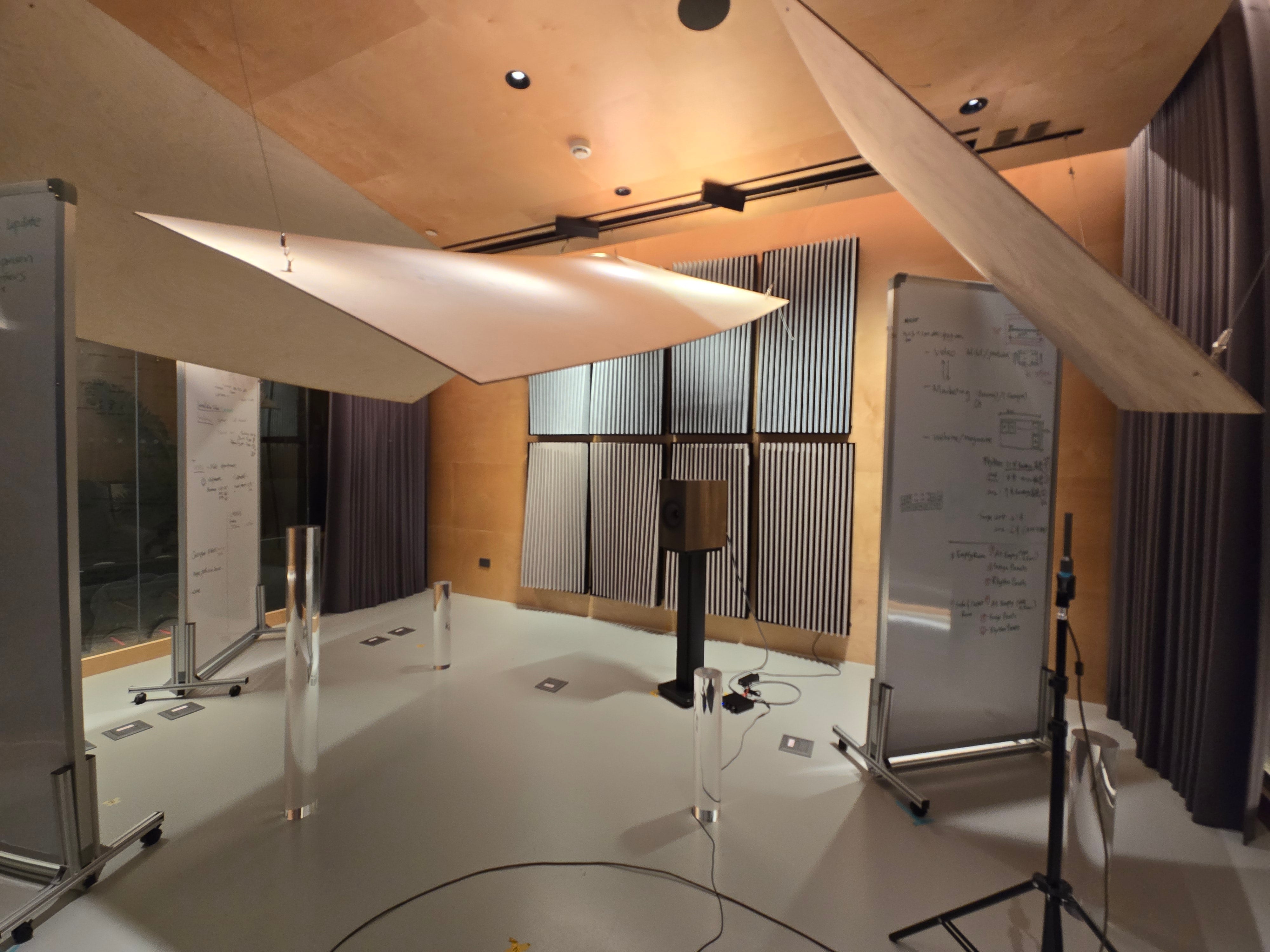

精準擴散空間處理

為減少梳狀濾波，並確保更精確的衰減讀數，我們安裝了輕量化擴散元素與天花反射器這些有助於分散聲音，營造更均勻的音場——在小空間中尤為重要——讓測量不受早期反射或駐波影響。

這為我們帶來可靠、真實的表現基準：

Rhythm Pro 吸音係數：0.90
Rhythm + Bass Trap 吸音係數：1.05

這些數值經過校準修正後取平均得出。

結果圖表

（下方：各頻率吸音係數）

這瀑布圖展示房間隨時間消散聲音的變化。
經過處理的空間（配備 8 塊 Rhythm Pro 面板及天花擴散），聲能分佈更均勻，特別是在100–5000 Hz 範圍，減少殘響，細節更見分明。

未經處理空間— 400 Hz 以下，低頻餘韻悠長，餘音繚繞，整體衰減至 50dB 約需360毫秒

經過聲學處理的空間— 更快的衰減，回應更流暢，整體衰減時間至降低約50dB180毫秒

⬇️ 下載數據
